| Type |
|

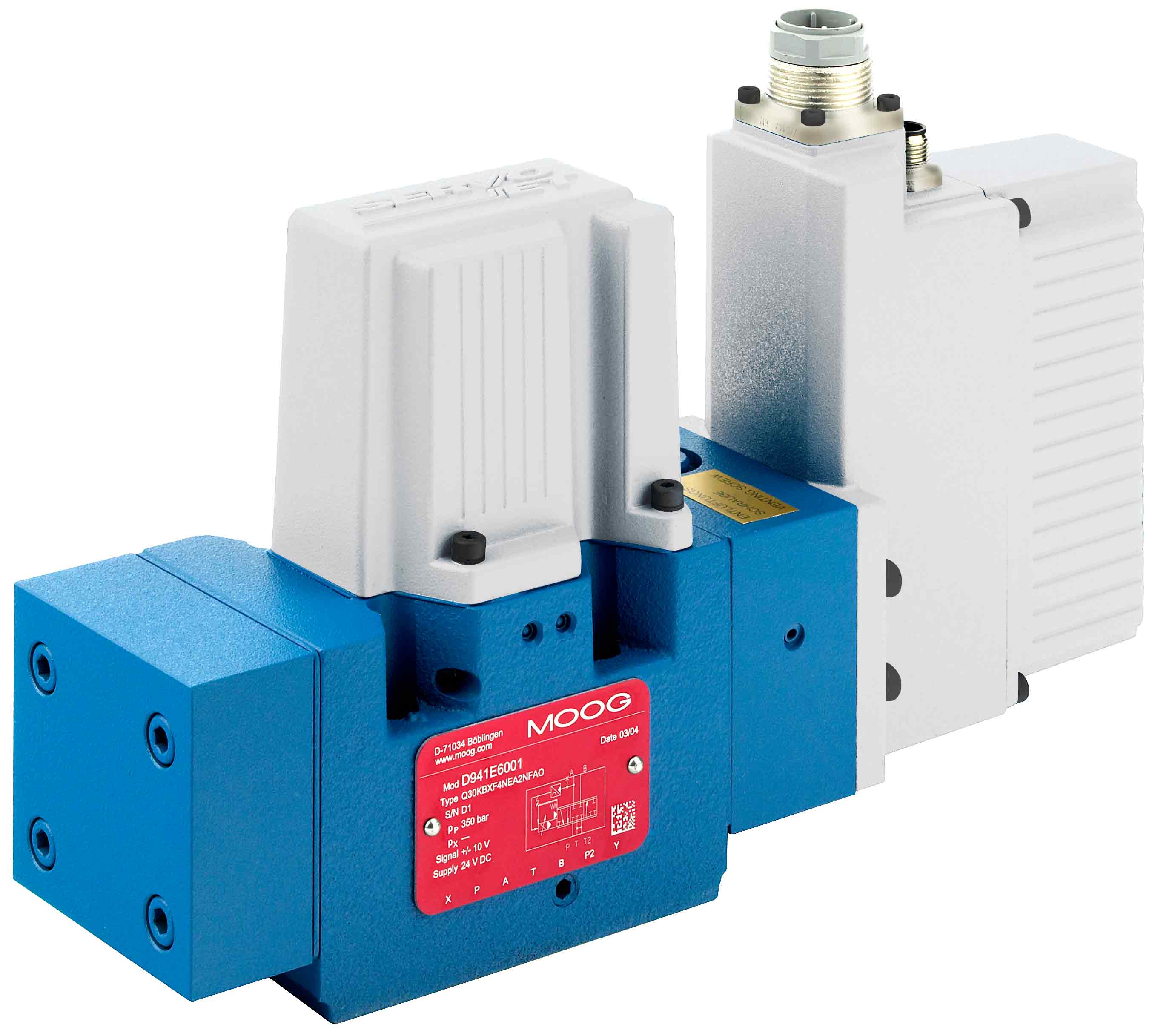

Proportional Valve |
|
|
| Design |
|
Spool version, two-stage |
|
|
| Size (ISO 4401) |
|
05 |
|
|
| Mounting type |
|
ISO 4401 Size 05 (NG 10) |
|
|
| Max operating pressure |
|
350 bar (P, A, B) |
|
| Rated flow |
|
8 to 80 l/min @ ∆p 5 bar per land |
|
| Max flow |
|
180 l/min |
|
| Hydraulic fluid |
|
Hydraulic oil as per DIN 51524 parts 1 to 3, other fluids upon request |
|
| Viscosity range |
|
5...400 mm²/s, 15...45 mm²/s recommended |
|
| Hydraulic fluid temperature |
|
-20°C to +80°C |
|
| Cleanliness class (ISO 4406) |
|
17/14/11 (for longer service life)
19/16/13 (for functional safety) |
|
| Supply voltage |
|
24 VDC (18 to 32 VDC) |
|
| Fieldbus interface |
|
CANopen, Profibus and EtherCAT |
|
| Protection |
|
IP65 with mounted plugs |
|
| Typical applications |
|
Metal Forming and Presses
Gas, Steam and Water Turbines
Automotive Test
Aerospace test
Simulation
Paper Machinery |
|
